Superior Sanitation

About Clean-in-Place

The MPE Clean-In-Place (CIP) Chain-Vey system is specially-designed to provide a fully-washable transport system for sanitary applications.

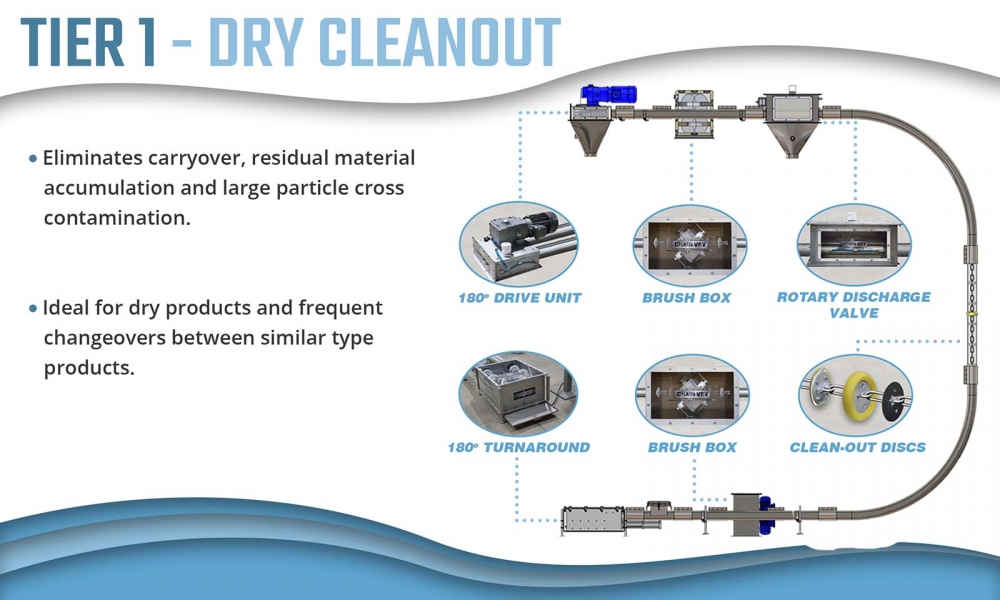

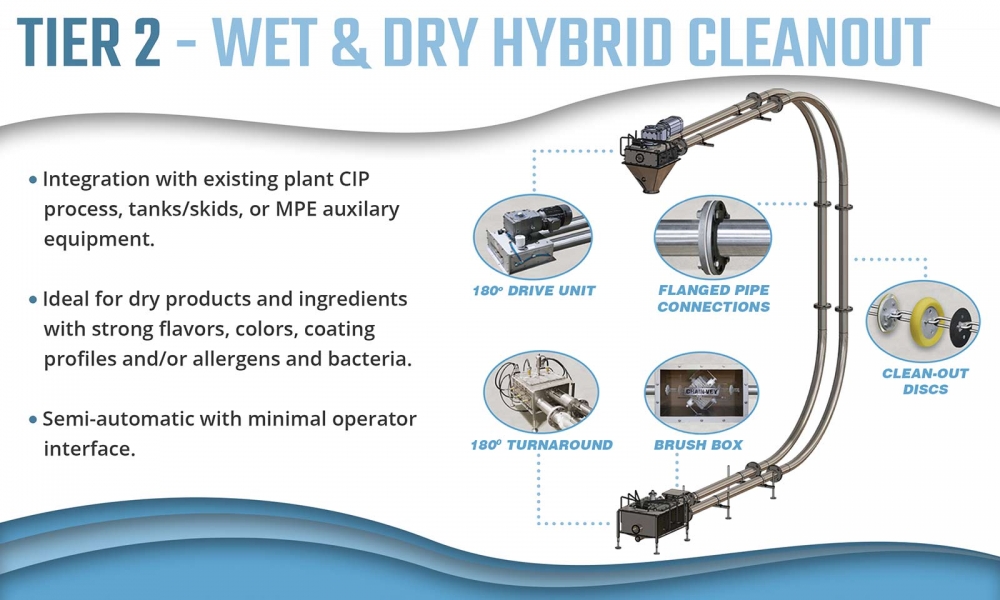

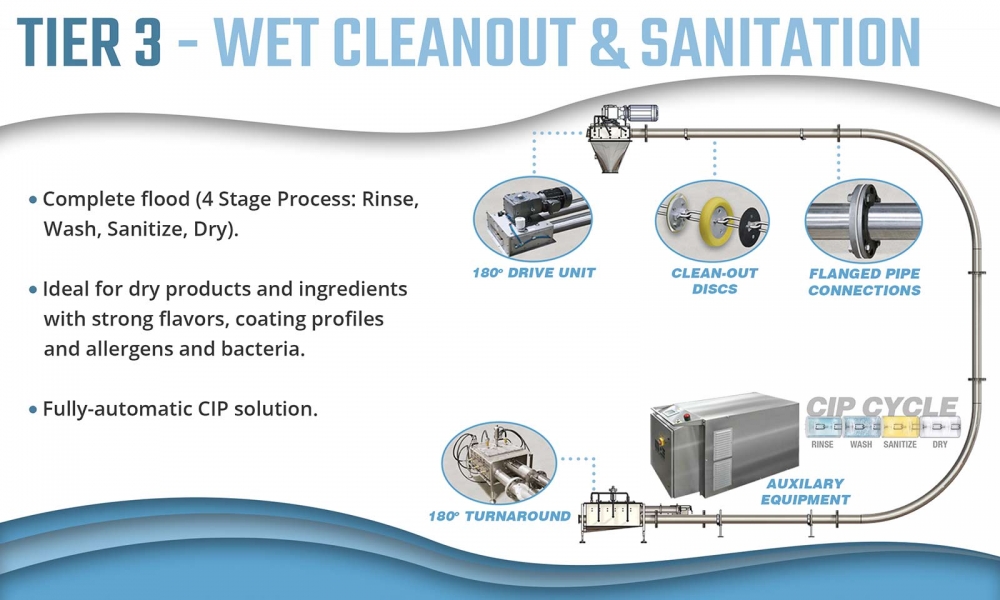

The CIP cycle is FULLY-AUTOMATED by the CIP cart, which includes a PLC control panel with touchscreen.  The cleaning cycle first FLOODS the conveyor with a concentration-controlled solution of water and detergent, then a RINSE cycle commences, flooding the system with fresh water or water and SANITIZER and drains when complete.  Finally, a DRYING cycle completely dries the conveyor to prepare for the subsequent product batch.

CIP Advantages

  • Water-tight flanged construction with automated cleaning system eliminates manual cleaning methods
  • Reduces system downtime required for cleaning by 75% compared to non-CIP methods
  • Unlike comparable pneumatic systems, the CIP system does not require disassembly for cleaning
  • Customizable control system for your application and supervisory system
  • Process tracking such as water temperature and detergent concentration
  • Tested and proven to pass all swab testing, including aerobic plate count, coliform and bi-luminous
  • Quick change-over between difficult-to-clean products
Clean-In-Place full system Clean-In-Place Cleaning Cart Clean-In-Place 180º Tension Unit Product Inlet Double-Pipe Floor Support Product Sight Glass Water-Tight Flanged Pipe Connection Sweep Elbow Double-Pipe Ceiling Support Clean-In-Place 180º Drive Unit Discharge Transition
Clean-In-Place full system
  • Clean-In-Place - Clean-In-Place Cleaning Cart highlighted

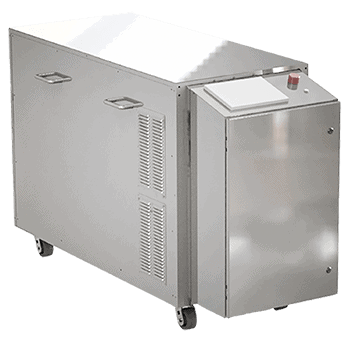

    Clean-In-Place Cleaning Cart

    Clean-In-Place Cleaning Cart

    Fully-automated and metered rinse, high-pressure detergent wash, sanitizing and heated dry cycles with touch-screen controls.

  • Clean-In-Place - Clean-In-Place 180º Tension Unit highlighted

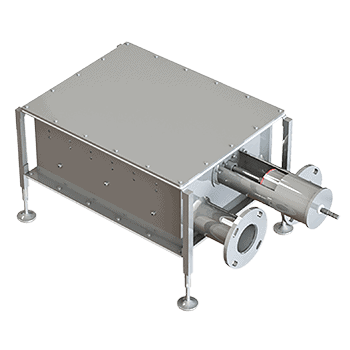

    Clean-In-Place 180º Tension Unit

    Clean-In-Place 180º Tension Unit

    Includes direct spray nozzles for chain and discs, 360º spray nozzles to clean box and tri-clover nozzle connections. Also incorporates automated drain valve for sequential filling and draining of the complete conveyor line.

  • Clean-In-Place - Product Inlet highlighted

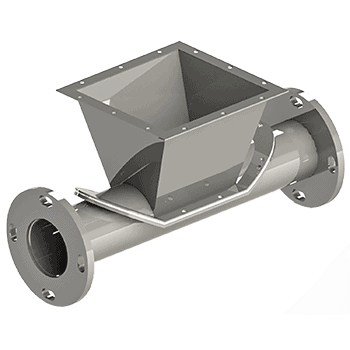

    Product Inlet

    Product Inlet

    The entry point of product into the Clean-In-Place conveying system.  Can be outfitted with standard or custom transitions.

  • Clean-In-Place - Double-Pipe Floor Support highlighted
    Double-Pipe Floor Support

    Double-Pipe Floor Support

    Used to support the piping and maintain the set center-to-center distance.  The stand includes threaded leveling mounts that allow for vertical pipe adjustment.

  • Clean-In-Place - Product Sight Glass highlighted

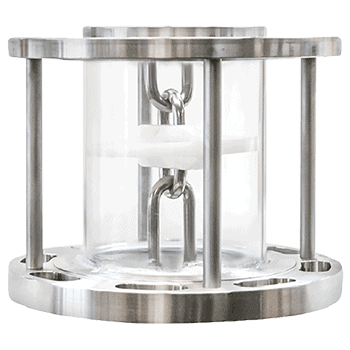

    Product Sight Glass

    Product Sight Glass

    Enables viewing during conveying and is made from a clear polycarbonate with the same dimensions as the stainless steel piping.

  • Clean-In-Place - Water-Tight Flanged Pipe Connection highlighted

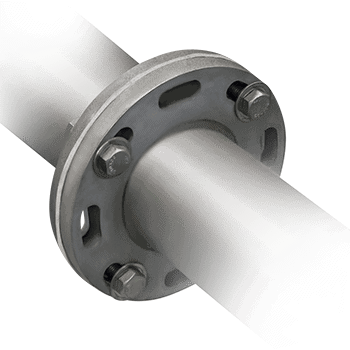

    Water-Tight Flanged Pipe Connection

    Water-Tight Flanged Pipe Connection

    Concentric flange design to create sanitary metal-to-metal pipe seam connection and compressed gasket for sealing.

  • Clean-In-Place - Sweep Elbow highlighted

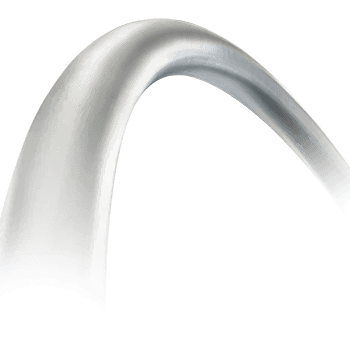

    Sweep Elbow

    Sweep Elbow

    Used for gentle changes in pipe direction, sweep elbows are specially bent from seamless pipe to precise dimensional tolerances and uniform concentricity. Based on requirements, elbows are available in a variety of angles and radii for complete flexibility of your system layout.

  • Clean-In-Place - Double-Pipe Ceiling Support highlighted
    Double-Pipe Ceiling Support

    Double-Pipe Ceiling Support

    Designed for suspension from the ceiling using threaded rod or cable and keep piping at the set center-to-center distance.

  • Clean-In-Place - Clean-In-Place 180º Drive Unit highlighted

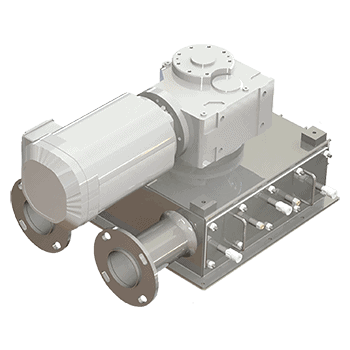

    Clean-In-Place 180º Drive Unit

    Clean-In-Place 180º Drive Unit

    An outboard gearmotor drives the chain and pucks at the 180° drive unit.  Adjustable Teflon packing seals the drive shaft as it enters the water-tight drive unit box.  The box incorporates direct spray nozzles for chain and discs and 360º spray nozzles to clean the box interior.  All nozzles and the drying port are fastened to the unit by sanitary tri-clover fittings.

  • Clean-In-Place - Discharge Transition highlighted

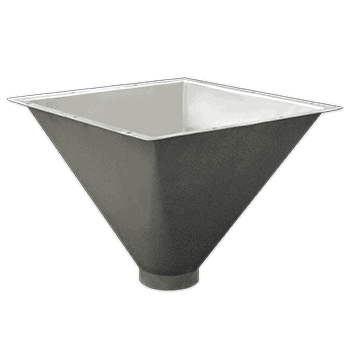

    Discharge Transition

    Discharge Transition

    Custom-designed to your application, discharge transitions are supplied to funnel product from discharge points to the desired flange connection or discharge spout.
