Gently convey with the MEGA 8″ (203 mm) conveying system
Up to 100,000 lb/hr (45,000 kg/hr) or 2,000 ft3/hr (57 m3/hr)
- 500% longer conveying distance compared to cable
- 400% stronger than cable
- No infeed equipment required
- Lowest breakage in the industry
The Chain-Vey Mega 8″ tube chain conveyors are made with Schedule 10 stainless steel tubing with an inner diameter of 8″ or 203 mm. They’re a great size for large scaled process systems that need to move large quantities of products quickly and efficiently. A single 8″ diameter conveyor can transport over 50 super sacks’ worth of product in an hour. The strength of Chain-Vey allows for very long runs, high verticals, and the ability to start from full loads without risk of the chain breaking. The gentle nature of tube chain conveyors means your product will experience zero degradation during conveyance.
Projects
Chain-Vey Lab with a Mega 8″ Conveyor
Our state of the art Chain-Vey Lab has a Mega 8″ conveyor to test your product.
Move 50 super sacks in an hour with one tube chain conveyor
Each super sack represented is 40 ft3, equivalent to ≈1.13 m3.

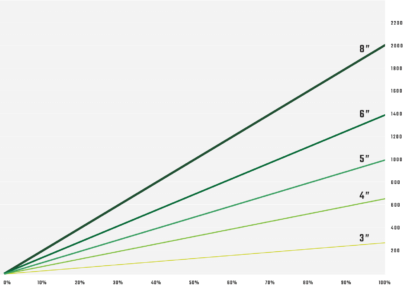

Capacities compared
3″ through 8″ diameter conveyors graphed.
