ROLLER-STYLE CAPSULE GRINDERS

MODEL 600 MINI.MAX & SUPER.MAX SERIES GRINDERS

MINIMUM SIZE. MAXIMUM PERFORMANCE.

REVOLUTIONARY GRINDERS FOR THE COFFEE INDUSTRY

Size Matters. Kilo for kilo, pound for pound, the Mini.Max and Super.Max are the most powerful capsule grinders ever built.

The compact Mini.Max and Super.Max can be configured in your process as either a “Stand-Alone” system or as a “Sit on Top” grinder at your capsule packaging machine. This provides the “twin” requirements of both ideal grind distribution and densification.

THE MODEL 600 MINI.MAX & SUPER.MAX SERIES CAPSULE GRINDERS PROVIDE:

The highest quality roller-style capsule grind allows for higher extraction yields and consistent flow times.

The most versatile density control provides higher densification capabilities to improve gram weight control and increase coffee brew strength.

Full range grind capability from 200 to 800 microns.

THE PERFECT
ADDITION

The Model 600 Mini.Max and Super.Max series roller-style capsule granulizers fit into any plant design to provide your capsule packaging equipment with the perfect grind, where you need it, when you need it

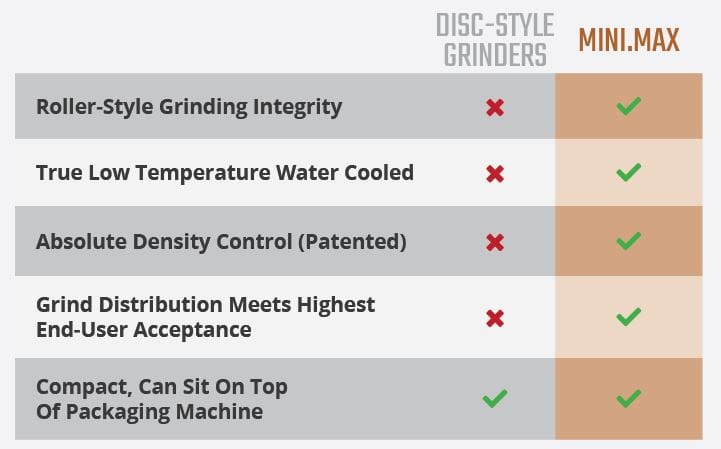

COMPARE THE DIFFERENCE

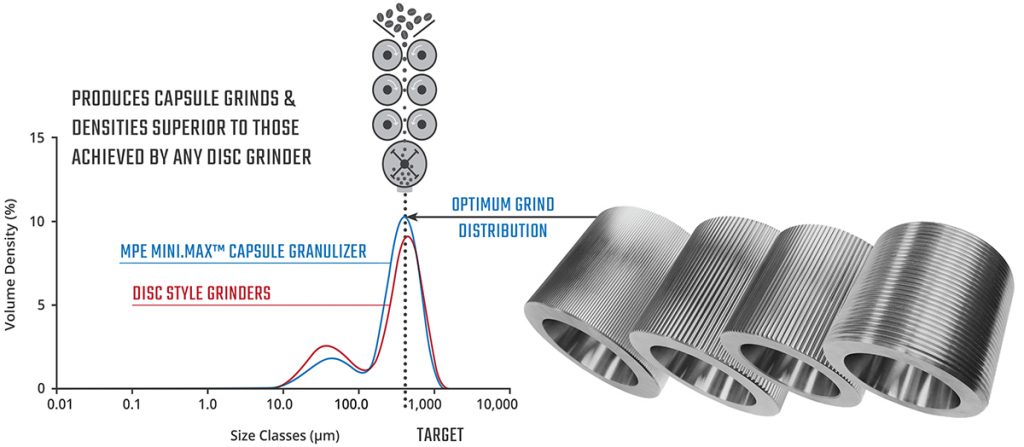

THE PERFECT GRIND

Now, the quality grind that was previously only achieved with a roller-style grinder can be installed, economically, in tandem with capsule filling machines. It is no longer necessary to compromise quality with a disc-style grinder.

DUAL CONFIGURATION OPTIONS

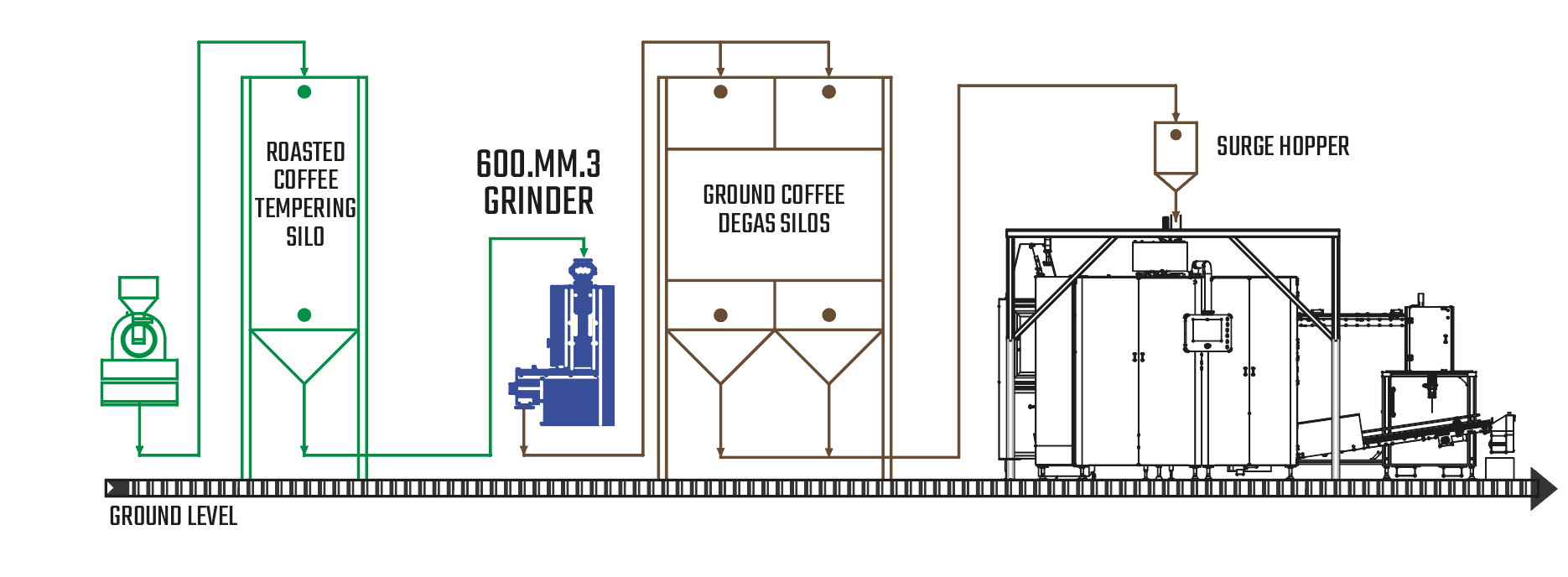

1. TANDEM GRINDING
CONFIGURATION

The 600 MM.3 and SM.3 grinders can operate in a “Stand-Alone” system.

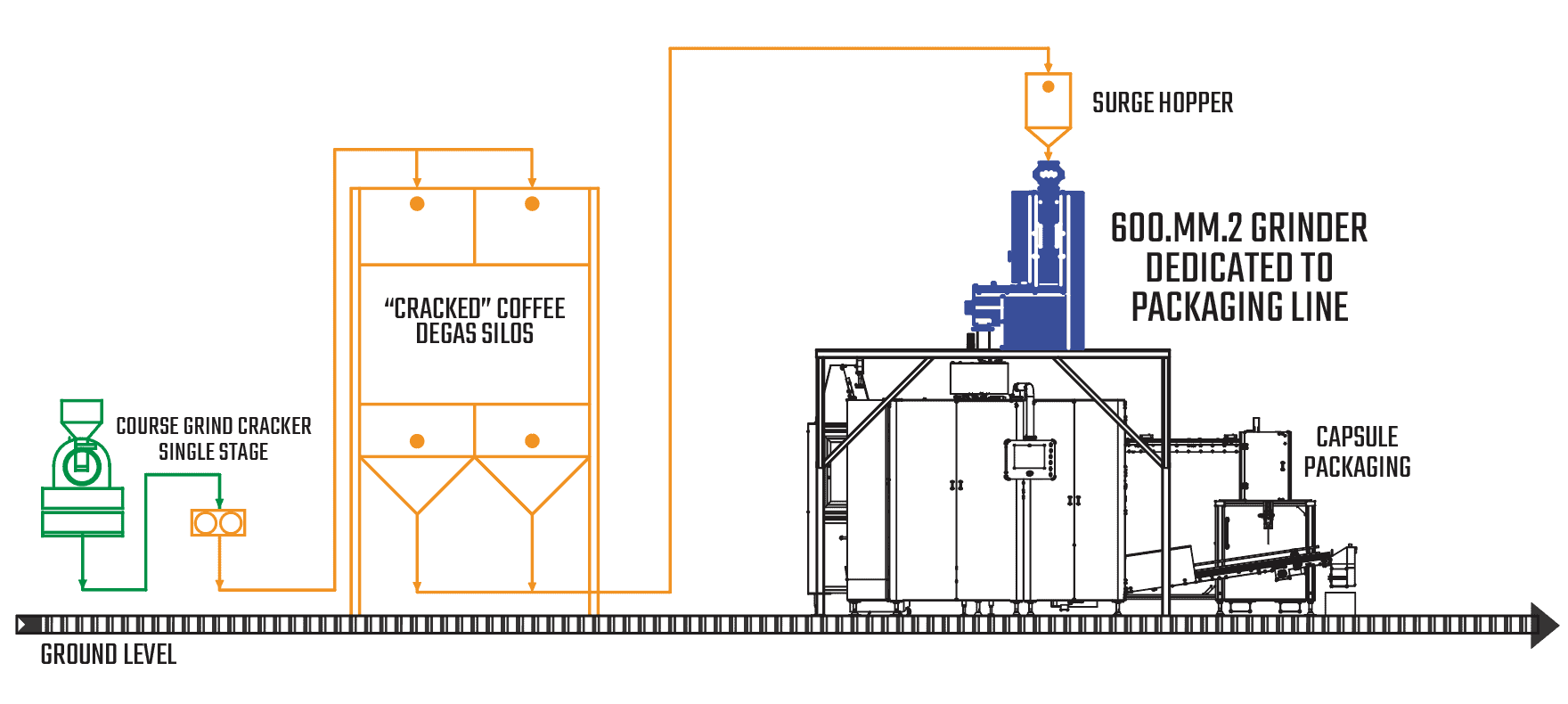

2. GRINDING IN PLACE
CONFIGURATION

The 600 MM.2 and SM.2 grinders can “Sit on Top” of the Packaging Machine.

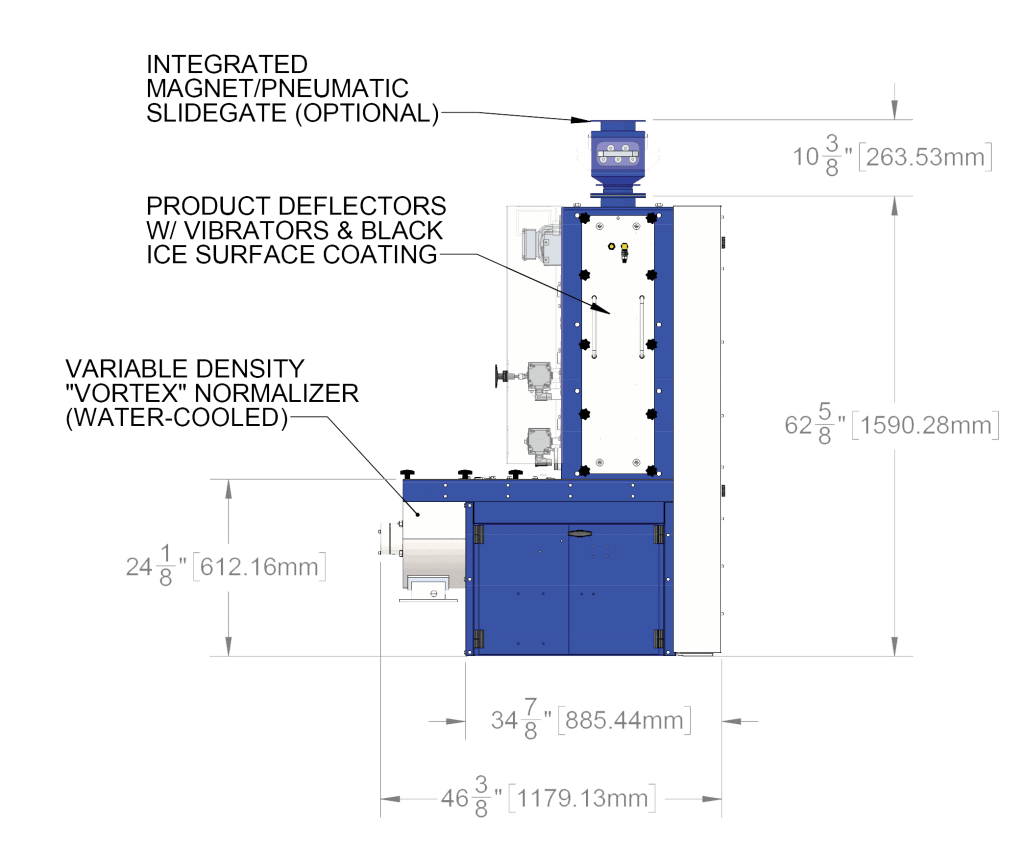

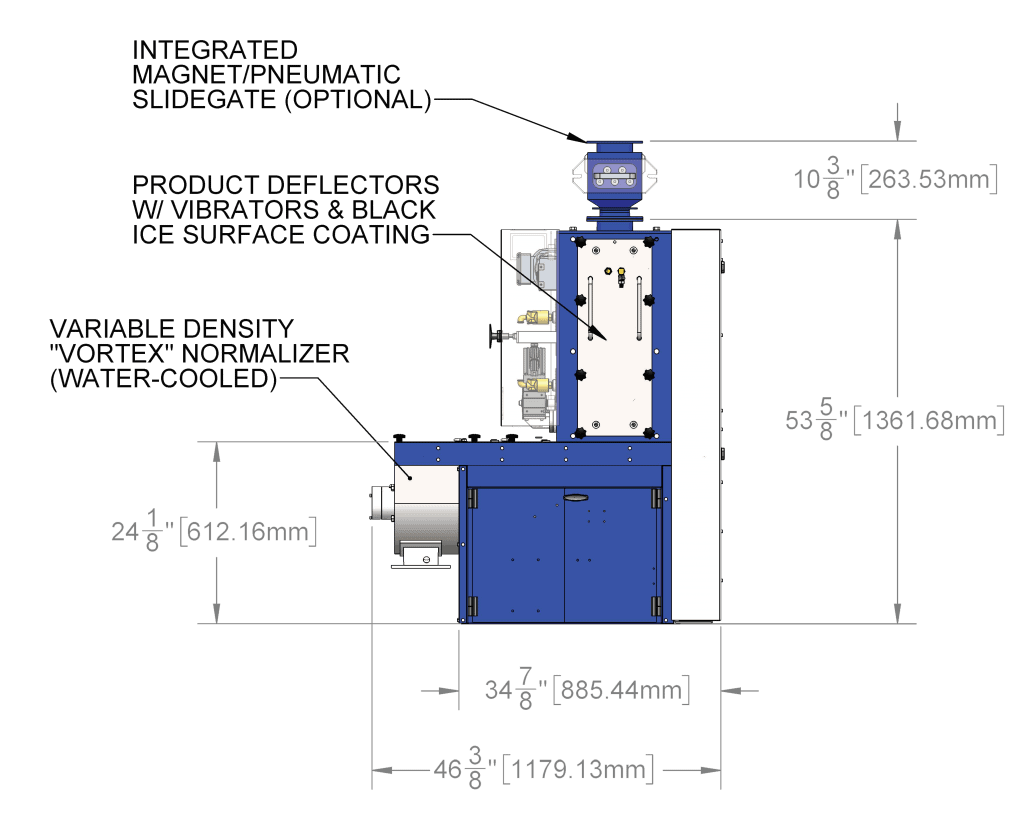

TECHNICAL SPECIFICATIONS

Two section grinders, ideal for grinding pre-cracked coffee.
Three section grinders, ideal for stand-alone operation.

Not Shown: Gas-tight design with Nitrogen ports

ACCOMMODATES ALL
SINGLE SERVE GRIND SIZES
SPECIFICATIONS MINI.MAX MODELS 600 MM.2 /600 MM.3 SUPER.MAX MODELS 600 SM.2 /600 SM.3
Roll Size: 6 x 8 inches [152 x 200 mm] 6 x 12 inches [152 x 305 mm]
  • K Style Pod Capsules
  • Nespresso™ Compatible Capsules
  • Any Proprietary Single Serve Capsule Design
  • Full range grind capability from 200 to 800 microns
Sections: Two (2) stacked grinding sections (600 MM.2)
Three (3) stacked grinding sections (600 MM.3)
Two (2) stacked grinding sections (600 SM.2)
Three (3) stacked grinding sections (600 SM.3)
Power: Mixer: 5.4 hp [4 kw] 60 hz
Grinder: 7.5 hp [5.7 kw] 60 hz
Mixer: 5.4 hp [4 kw] 60 hz
Grinder: 7.5 hp [5.7 kw] 60 hz
Capacity & Density*: 160 kg/hr @ 0.370 g/cc or 300 μm 240 kg/hr @ 0.370 g/cc or 300 μm

*Nespresso™ compatible capsules

AUTOMATED PLC CONTROL SYSTEM

Menu-driven system controls every facet of the grinder to achieve:

  • Separate recipes for each product, optimizing every coffee specification
  • Coffee Granulometry (Grind)
  • Coffee Density (Compaction)
  • Operational Coordination
  • with Packaging Machine
  • Coffee Temperature
  • Essentially everything
