Chain-Vey for Flour Works Wonders over Screw and Pneumatic Conveyors

A large flour producer in the US manufactures and distributes corn flour as an ingredient in various food products.

Roughly one year ago plant engineers installed (3) 6-inch Chain-Vey tubular drag conveyors for the transport of yellow and white corn flour. The Chain-Veys replaced screw conveyors and pneumatic conveyors that resulted in poor customer feedback with product being out of spec.

With milling and packaging operations split by an expansive WIP staging area, a combination of screw augers and pneumatic systems seemed like the only viable solution at the time. While the use of screw conveyors and pneumatic systems were able transport the flour, they were unable to do so without significant cost. The cost came in the form of out of spec products and poor customer feedback resulting from the brutal nature of screw and pneumatic conveying. Unable to continue struggling with out of spec products, plant mangers began evaluating other conveyance solutions which is why they sought MPE's assistance.

Familiar with the importance of maintaining the particle size of granular products through experience in the coffee industry, MPE knew that the gentle conveyance of the Chain-Vey was just the solution the plant managers needed. With the ability to convey products with the least amount of product degradation extended distances, they went with Chain-Vey over all other competing conveyors.

Since installing their Chain-Veys, customer feedback has been higher due in spec product without any complaints of degradation to particle size and homogeneity.

Notes about the customer's product and system:

  • Customer's cornmeal has a bulk density between 42-44 lb/ft3
  • Maximum rate for each conveyor is 1,400 ft3/hr
  • Conveyors were built with Schedule 10 stainless steel pipe
  • Primary voltage for each conveyor is 230/460 V, 3 PH

System 1Chain-Vey for flour

Circuit length is 348 ft with hardened steel chain and split UHMW pucks.

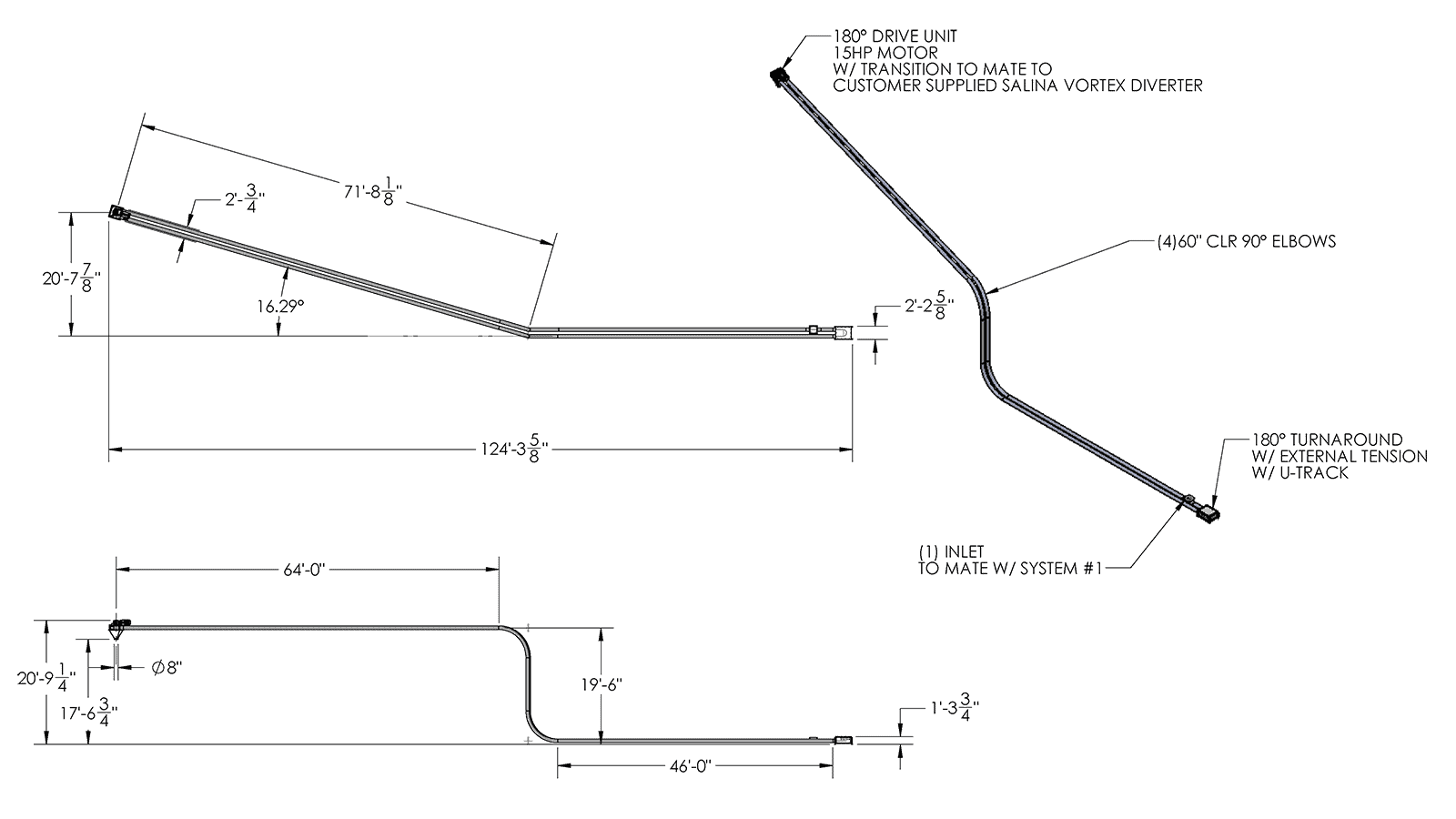

System 2

Chain-Vey for flourCircuit length is 282 ft with a hardened steel chain and split UHMW pucks.


System 3

Chain-Vey for flourCircuit length is 360 ft with hardened steel chain and split UHMW pucks.
